UNITED STATES PATENT OFFICE
90,469
DESIGN FOR A SERVICE STATION
Herbert O. Alden, Oakland, Calif., assignor to Shell. Oil Company, San Francisco, Calif., a Corporation of California
Application March 25, 1933. Serial No. 4’7,584
Term of patent 14 years
To all whom it may concern:
Be it known that I, HERBERT 0. ALDEN, a citizen of the United States, and a resident of Oakland, California, have invented a new, original, and ornamental Design for a Service Station, of which the following is a specification reference being had to the accompanying drawings forming part thereof.
Figure 1 is a front view of the service station.
Figure 2 is a top plan view of the service station.

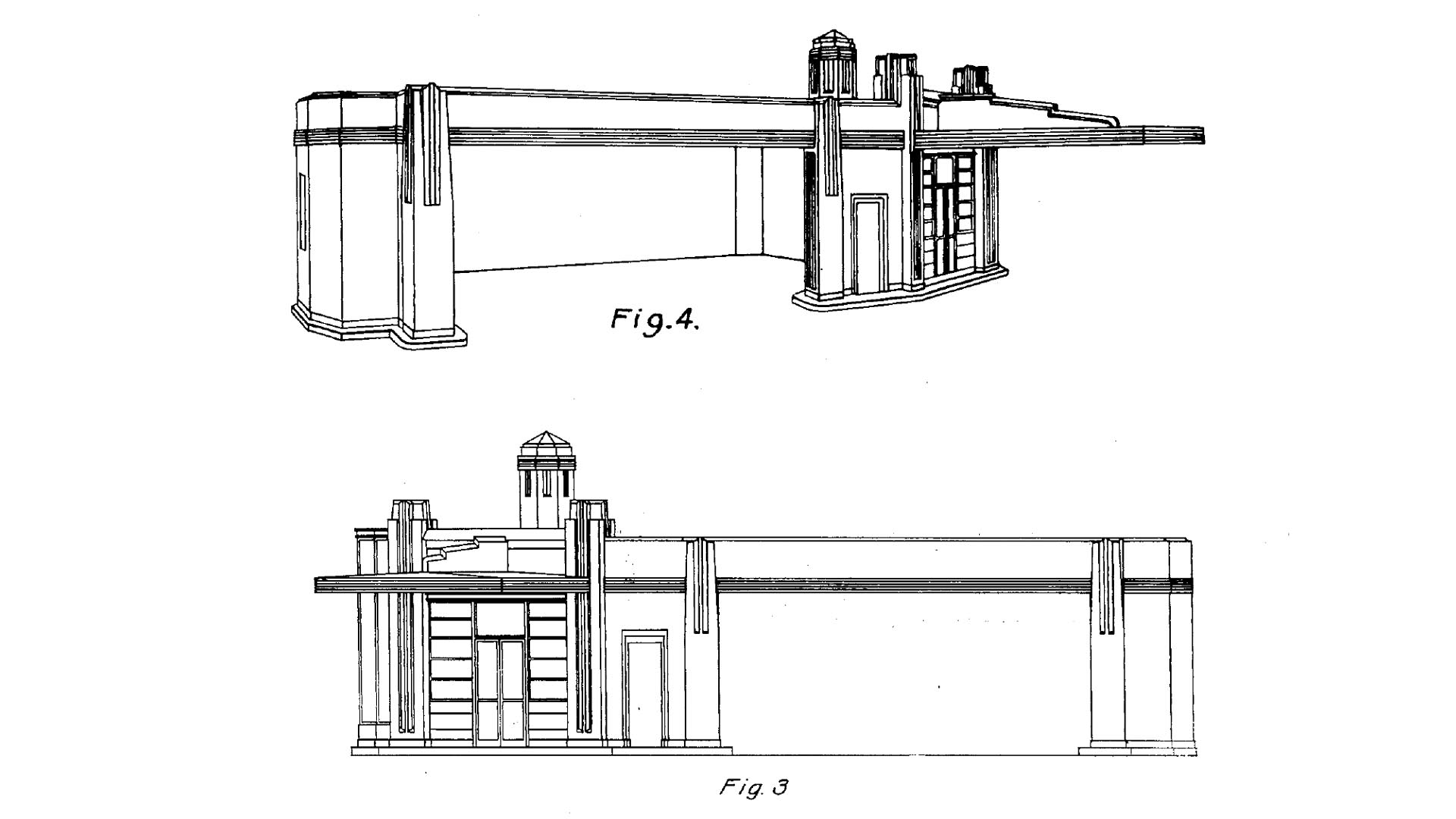

Figure 3 is a side elevation of the service station.
Figure 4 is a side perspective view of the service
station.
I claim:
The ornamental design for a service station as shown.
In testimony whereof, I have hereunto set my hand.
HERBERT O. ALDEN.
